Product advantage
1.Solves the pain point of "long feeding time and low efficiency" — The fully enclosed design combined with automatic feeding function greatly shortens feeding time and improves standard production efficiency.
2.Addresses the problem of "poor precision and low reliability" — Key components such as modularly assembled reducers, gears and racks are selected from well-known brands to ensure standardized high-precision cutting of the equipment and improve operation reliability.
3.Resolves the issue of "easy fuselage deformation and poor stability" — The cutting bed undergoes heat treatment to eliminate welding stress, reduce heat input and avoid long-term thermal deformation; the high-strength integral cast aluminum alloy beam has the characteristics of beauty, high strength and light weight, with good dynamic response.
4.Overcomes the difficulty of "few options and high labor intensity" — The overall modular design provides diverse standard options; the front blanking area is equipped with a blanking conveying module, which facilitates the conveying of blanked plates and reduces workers' labor intensity.
2.Addresses the problem of "poor precision and low reliability" — Key components such as modularly assembled reducers, gears and racks are selected from well-known brands to ensure standardized high-precision cutting of the equipment and improve operation reliability.
3.Resolves the issue of "easy fuselage deformation and poor stability" — The cutting bed undergoes heat treatment to eliminate welding stress, reduce heat input and avoid long-term thermal deformation; the high-strength integral cast aluminum alloy beam has the characteristics of beauty, high strength and light weight, with good dynamic response.
4.Overcomes the difficulty of "few options and high labor intensity" — The overall modular design provides diverse standard options; the front blanking area is equipped with a blanking conveying module, which facilitates the conveying of blanked plates and reduces workers' labor intensity.

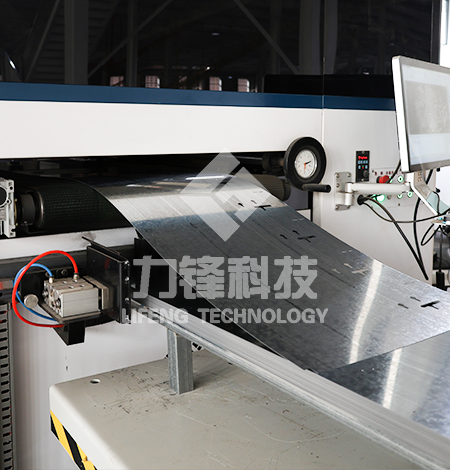

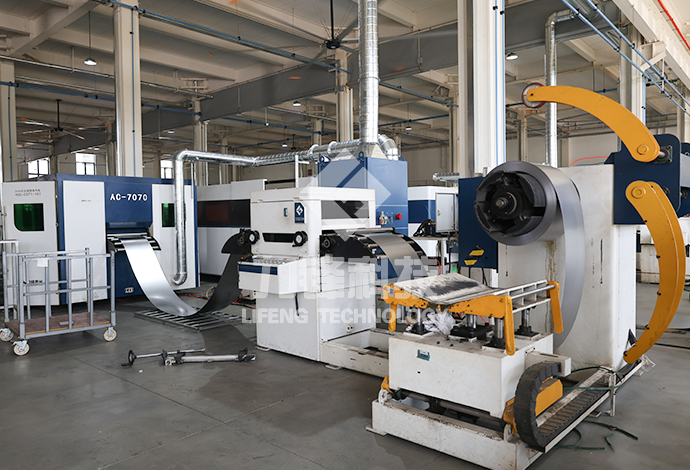

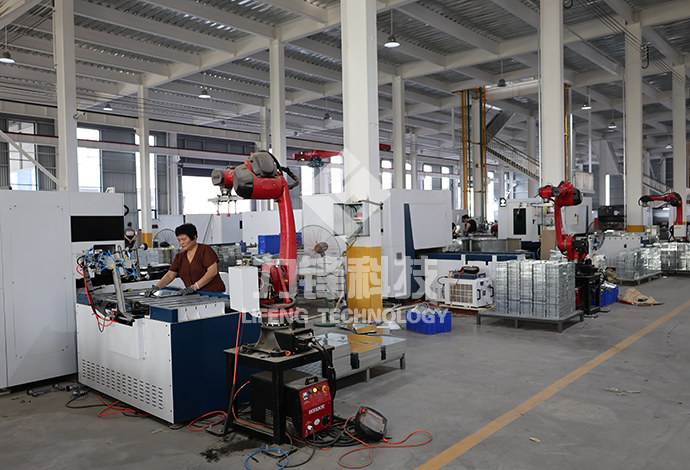

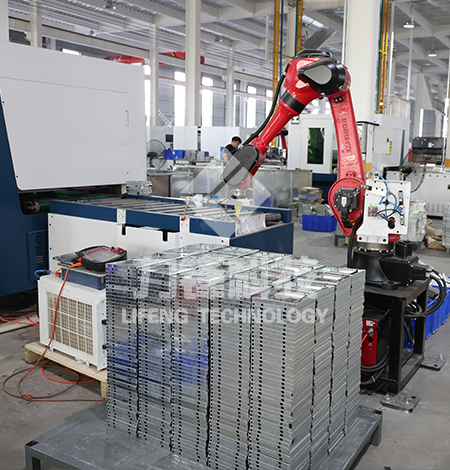

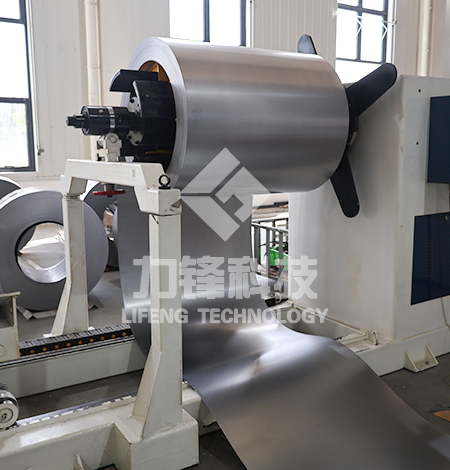

Product show
Product principle
Stable cutting foundation — The heat-treated bed avoids deformation, and the aluminum alloy beam provides stable support to ensure accurate positioning of the laser cutting head during standard operation, laying the foundation for high-precision finished material cutting.
Standard automated processing — The automatic feeding system delivers finished materials to the cutting area, and the CNC system controls the laser cutting head to cut according to standard programs; key components work together to ensure standard cutting precision and efficiency, and the modular design can be flexibly adjusted according to needs.
Convenient blanking and conveying — After cutting, the blanking conveying module in the front blanking area automatically conveys the finished plates to the designated area, reducing manual handling, lowering labor intensity and forming a standardized automated "feeding-cutting-blanking" process.
Standard automated processing — The automatic feeding system delivers finished materials to the cutting area, and the CNC system controls the laser cutting head to cut according to standard programs; key components work together to ensure standard cutting precision and efficiency, and the modular design can be flexibly adjusted according to needs.
Convenient blanking and conveying — After cutting, the blanking conveying module in the front blanking area automatically conveys the finished plates to the designated area, reducing manual handling, lowering labor intensity and forming a standardized automated "feeding-cutting-blanking" process.
Technical specifications
| Machine Model | LF-AC-7070 |
| Cutting Area | 700x700mm |
| X-Axis Stroke | 700mm |
| Y-Axis Stroke | 700mm |
| Z-Axis Stroke | 110mm |
| Feeding Precision | ±0.05mm |
| Minimum Cutting Edge | 1mm |
| Leveling Thickness | 0.3-1.5mm |
| Maximum Positioning Speed | 120m/min |
| Maximum Acceleration | 1.2G |
| Gas Used / Operating Gas | Air / Oxygen / Ammonia |
